SMART20-20W Desktop Split Fiber Laser Marker
$ 1799
$ 2299
Save:$666
重量
SKU: SMART
Condition:New
-
Option
- Machine
- Machine with Lightburn
隐藏域元素占位
Shipping:
The shipping cost varies according to the customer's delivery address. Please contact customer service for confirmation before placing an order. For more information, please refer to our Shipping Policy.
Returns:
Every product purchased at HGNOVA is eligible for a 30-day return policy, unless otherwise noted. For more information, please refer to our Return Policy.
Delivery:
Delivery time varies by carrier: 7-10 business days or up to 45 days
Payments:
(Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.)
Product Description

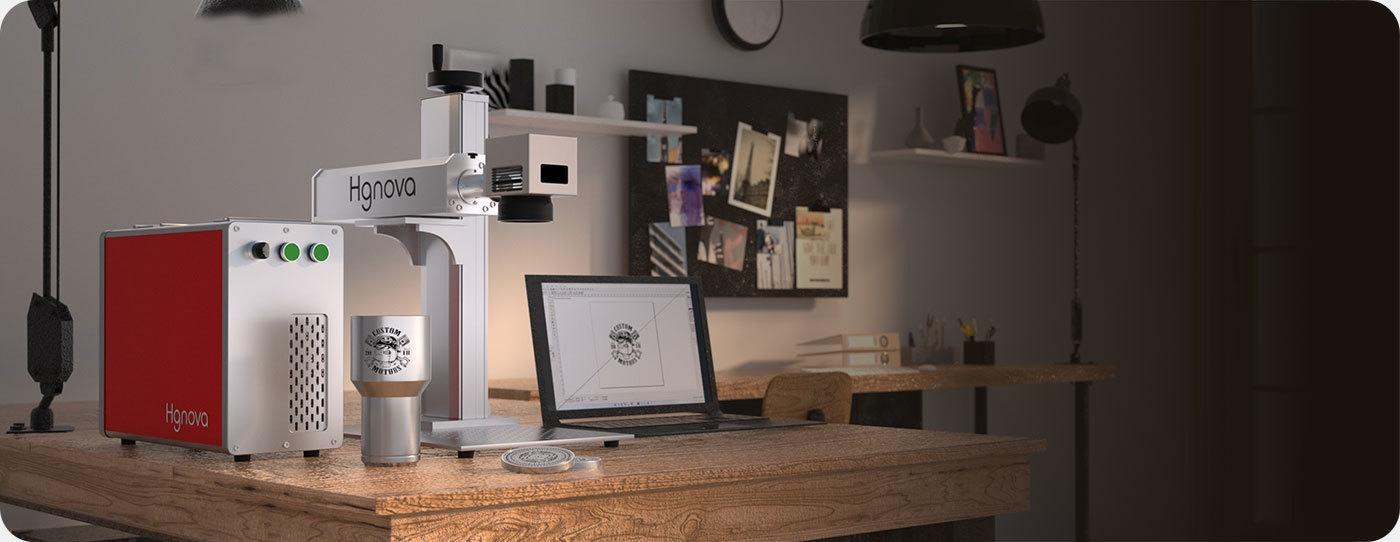

20W Fiber Laser Marker
This device offers stable and reliable operation thanks to its world-renowned laser source.
Industry-Leading Laser Source
This etching and marking machine features a high-speed galvanometric system that minimizes delays and enhances work efficiency.
7000 mm/s Max. Marking Speed
The advanced drive and scanning system ensure exceptional accuracy and fast, stable marking of flat surfaces at speeds of up to 275.6 inches per second (7000 mm/s).
Unparalleled Accuracy
With less than 1% distortion, this machine flawlessly executes intricate designs with astonishing precision.
FΘ Field Lens
Our Fθ lens enables vivid markings on flat surfaces, maintaining a consistent and focused spot size across its 4.3 × 4.3 in. (110 × 110 mm) marking area.
(Maximum Workpiece Size: 290 mm)

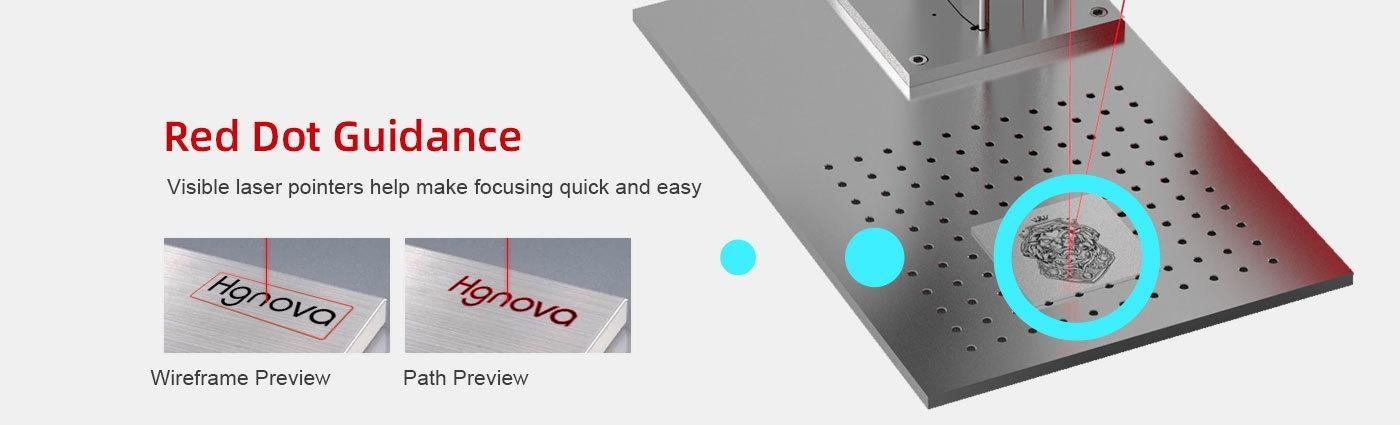

Red Dot Guidance
Visible laser pointers facilitate quick and easy focusing. The scanning lens provides a clear, safe red light preview of your pattern’s outline for convenient positioning.
Unmatched Versatility
Break free from material constraints and explore limitless possibilities in your laser engraving projects.
YOU CANENGRAVE THESE MATERIALS
Brass/Brick/Carbide/Granite/Hard Plastic/Marble/Silver/Steel/Titanium/Gold/Tungsten
Specifications & Package List
2 x Positioning Bars
8 x Attaching Bolts
1 x Measure
1 x USB Flash Drive (with Software)
1 x Protective Eyewear
1 x Foot Switch
1 x Hex Wrench Set
1 x Tool Box
1 x Ground Wire
1 x USB Cable
1 x Instruction Manual
Technical Parameters
| Item | TECHNICAL PARAMETERS | |
| Laser Parameters | Model | SMART |
| Laser type | Fiber | |
| Power | 20W | |
| Laser Wavelength | 1064nm | |
| Optical Output Characteristics | Marking Speed | F=160mm,≤5000 mm/s |
| Max. Engraving Depth | 0.002 in. (0.04 mm) on a single pass | |
| Working Area | 4.3 x 4.3 in. (110x110mm)(Maximum Workpiece Size Accommodated：290mm) | |
| Feature | Manual focus | |
| Minimum Marking Line Width | 0.06mm(depend on material)@F=160mm | |
| Minimum Character Height | 0.2mm@F=160mm | |
| Operating Environment | Operating Software | EzCad2 for Windows XP, 7, 8, or 10 (32/64 bit) |
| Supported Image Formats | ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif | |
| Cooling Method | Air Cooling | |
| Power Supply | AC220V/50Hz or AC110V/60Hz Voltage Fluctuation Range±5% | |
| Temperature, Humidity | 5~40℃,30%≤RH≤95%, | |
| Air Conditioning Required Beyond Specified Range | ||
| Oil Mist, Condensation | Not allowed | |
| Other | Dimensions (L×W×H) | 830*460*670mm/32.6*18.1*26.3in |
| Net Weight of Machine | Bare machine 75kg/165.3lb,With packaging80kg/176.3lb | |
| Material | Brass/Brick/Carbide/Granite/Hard Plastic/Marble/Silver/Steel/Titanium/Gold/Tungsten | |
