75W CO2 Laser Tube for Laser Engraver Cutting Machine
$ 169
$ 199
Save:$666
重量
Condition:New
隐藏域元素占位
Shipping:
The shipping cost varies according to the customer's delivery address. Please contact customer service for confirmation before placing an order. For more information, please refer to our Shipping Policy.
Returns:
Every product purchased at HGNOVA is eligible for a 30-day return policy, unless otherwise noted. For more information, please refer to our Return Policy.
Delivery:
Delivery time varies by carrier: 7-10 business days or up to 45 days
Payments:
(Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.)
Product Description
Product description
1. Installation requirements:
Install in strict accordance with the W-type laser installation diagram. Equipped with heat stimulated light P series special power supply, positive electrode with high voltage, lighting voltage greater than the corresponding model required lighting voltage. Failure to install according to the requirements is easy to lead to adverse consequences: ignition, breakdown of the inner tube water leakage.
2. Operating conditions:
Water cooling: The coolant is pure water, the flow rate is 2-5 liters per minute, and the standard water temperature is 10℃ -50 ℃.
Operating environment: temperature 2-40℃, humidity 10%-60%.
3. Adverse consequences caused by not using as required: the negative electrode will appear yellowish or purple when using long-term supercurrent, and greatly shorten the service life. To prevent dust from entering the electrode in the high pressure sheath, wrap plastic wrap around the high pressure sheath.

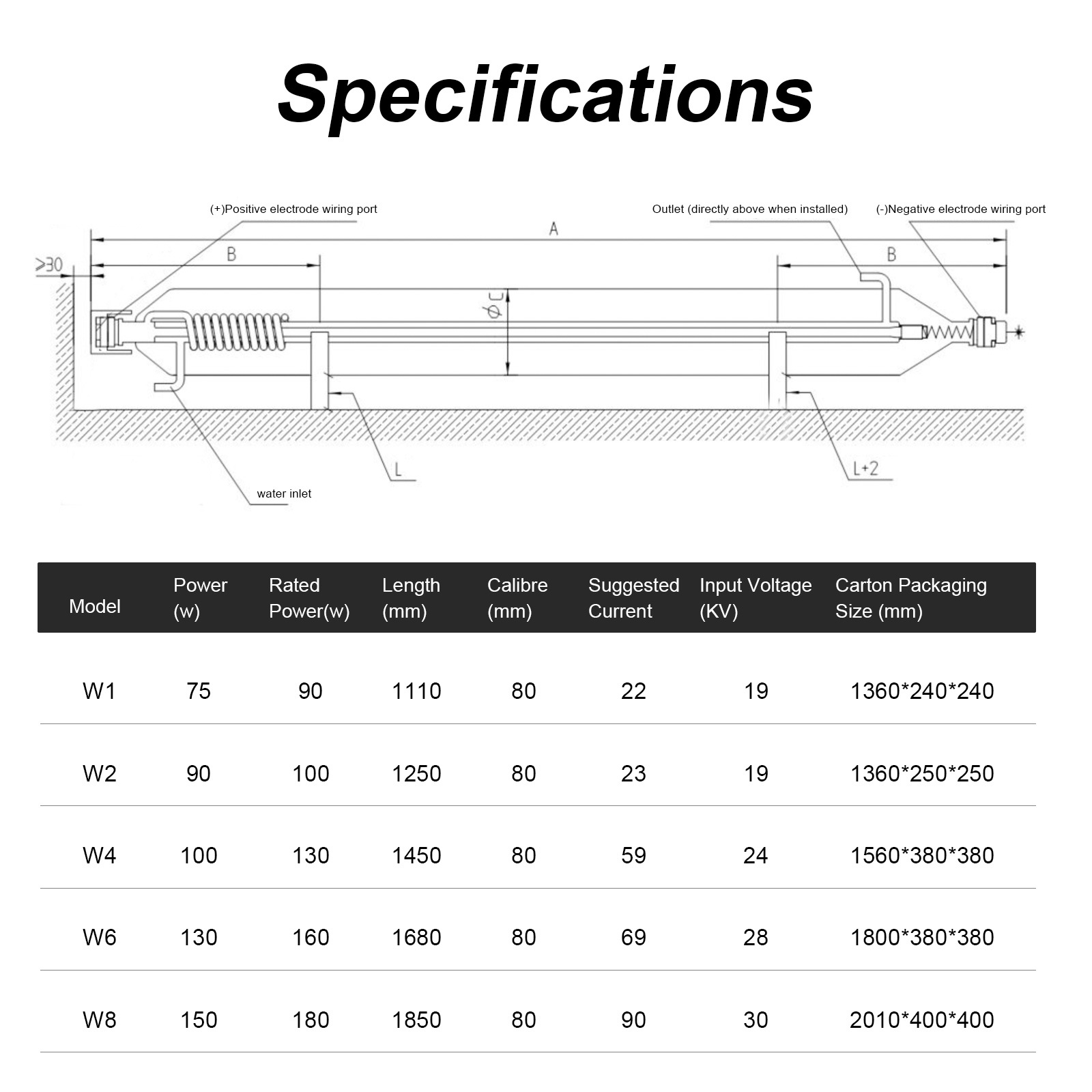

| Item | TECHNICAL PARAMETERS |
| Total length | 1110mm |
| Installation position | 240mm |
| Pipe diameter | 80mm |
| Lighting voltage KV | 19 |
| The recommended current is mA | 22 |
| Standard power W | 75 |
| Maximum power W | 90 |
| Service life | ＞15000 |
| Catalyst | Have |
| Package size mm |
Carton packing：1360*240*240 Wooden case packing：1380*260*270 |
| Weight | 22 |
