SMART20-20W Desktop Split Fiber Laser Marker
$ 1799
$ 2299
Save:$666
重量
SKU: SMART20
Condition:New
-
Option
- Machine
- Machine with Lightburn
隐藏域元素占位
Shipping:
The shipping cost varies according to the customer's delivery address. Please contact customer service for confirmation before placing an order. For more information, please refer to our Shipping Policy.
Returns:
Every product purchased at HGNOVA is eligible for a 30-day return policy, unless otherwise noted. For more information, please refer to our Return Policy.
Delivery:
Delivery time varies by carrier: 7-10 business days or up to 45 days
Payments:
(Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.)
Product Description
20W Fiber Laser Marker
This device offers stable and reliable operation thanks to its world-renowned laser source.
Industry-Leading Laser Source
This etching and marking machine features a high-speed galvanometric system that minimizes delays and enhances work efficiency.
7000 mm/s Max. Marking Speed
The advanced drive and scanning system ensure exceptional accuracy and fast, stable marking of flat surfaces at speeds of up to 275.6 inches per second (7000 mm/s).
Unparalleled Accuracy Achieved
With less than 1% distortion, this machine flawlessly executes intricate designs with astonishing precision.

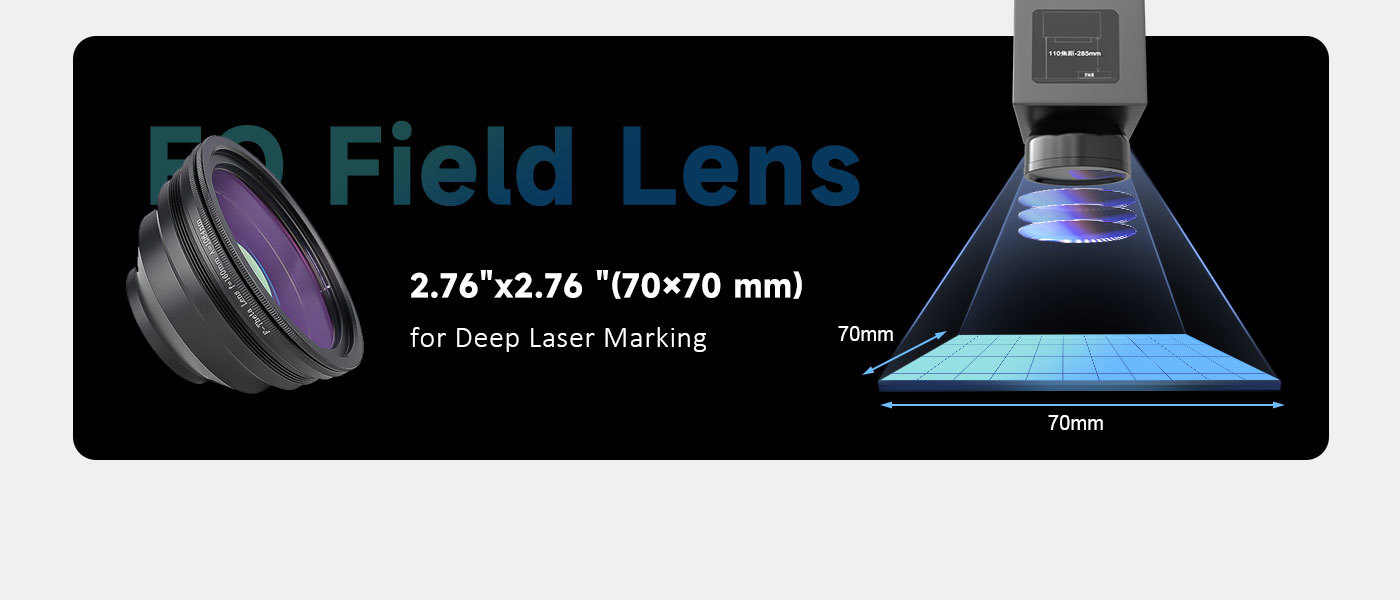

FΘ Field Lens
Our Fθ lens enables vivid markings on flat surfaces, maintaining a consistent and focused spot size across its 2.76 × 2.76in. (70 × 70 mm) marking area.
(Maximum Workpiece Size: 290 mm)
Red Dot Guidance
Visible laser pointers facilitate quick and easy focusing. The scanning lens provides a clear, safe red light preview of your pattern’s outline for convenient positioning.
Unmatched Versatility
Break free from material constraints and explore limitless possibilities in your laser engraving projects.
YOU CANENGRAVE THESE MATERIALS
Brass/Brick/Carbide/Granite/Hard Plastic/Marble/Silver/Steel/Titanium/Gold/Tungsten
Specifications & Package List
2 x Positioning Bars
8 x Attaching Bolts
1 x Measure
1 x USB Flash Drive (with Software)
1 x Protective Eyewear
1 x Foot Switch
1 x Hex Wrench Set
1 x Tool Box
1 x Ground Wire
1 x USB Cable
1 x Instruction Manual
Technical Parameters
| Item | TECHNICAL PARAMETERS | |
| Laser Parameters | Model | SMART |
| Laser type | Fiber | |
| Power | 20W | |
| Laser Wavelength | 1064nm | |
| Optical Output Characteristics | Marking Speed | F=160mm,≤5000 mm/s |
| Max. Engraving Depth | 0.002 in. (0.04 mm) on a single pass | |
| Working Area | 2.7 x 2.7 in. (70x70mm)(Maximum Workpiece Size Accommodated：350mm) | |
| Feature | Manual focus | |
| Minimum Marking Line Width | 0.06mm(depend on material)@F=160mm | |
| Minimum Character Height | 0.2mm@F=160mm | |
| Operating Environment | Operating Software | EzCad2 for Windows XP, 7, 8, or 10 (32/64 bit) |
| Supported Image Formats | ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif | |
| Cooling Method | Air Cooling | |
| Power Supply | AC220V/50Hz or AC110V/60Hz Voltage Fluctuation Range±5% | |
| Temperature, Humidity | 5~40℃,30%≤RH≤95%, | |
| Air Conditioning Required Beyond Specified Range | ||
| Oil Mist, Condensation | Not allowed | |
| Other | Dimensions (L×W×H) | 830*460*670mm/32.6*18.1*26.3in |
| Net Weight of Machine | Bare machine 75kg/165.3lb,With packaging80kg/176.3lb | |
| Material | Brass/Brick/Carbide/Granite/Hard Plastic/Marble/Silver/Steel/Titanium/Gold/Tungsten | |
FAQs
1.How can I pay for my order?
The following payment methods are available on the Hgnova website:
• Credit Card
• PayPal
You can select your preferred payment method on the payment page. Once the payment process is complete, an order confirmation will be sent to your email.
2.What countries do you ship to?
We ship to most regions worldwide. Please confirm availability with customer service before placing your order.
3.How long does delivery take?
All products not marked as overseas warehouse supported will be shipped from China warehouse.
For laser machine, there are 2 options:
DHL Express delivery within 7-10 working days
Xiangcheng Express delivery within 30-40 working days.
For accessories, there is 1 option:
DHL Express delivery within 7-10 working days.
No shipment: Sunday/National Holidays.
Delivery Schedule: Most packages will arrive as expected, but delays may occur due to flight schedules, weather or external factors.
Tracking: Check real-time updates for accurate delivery dates.
4.How will my delivery be shipped?
We will choose the carrier that we believe is most suitable for our customers based on the ordered product and the delivery address. You can also email us at hggh@hglaser.com if you have any preferences or questions regarding carriers.
5.How can I track my order?
When your order is shipped you will receive a confirmation email，you can track your order with the tracking number.
6.What should I do if my order is marked as delivered but I haven't received it?
Please check your surroundings, mailbox, and any designated drop-off spots. Ask household members or neighbors if they received it, and verify your shipping address. Sometimes, carriers mark packages as delivered early, so please wait 24-48 hours. If it still hasn’t arrived, contact the carrier (e.g.FedEx, DHL) with your tracking number. If the issue persists, reach out to our customer service with your order details, and we’ll assist you with a solution.
