Water Cooling 3W UV Laser Marking Machine
$ 2399
$ 2699
Save:$666
重量
SKU: GH-3UKS
Condition:New
-
Option
- Machine
- Machine with Lightburn
隐藏域元素占位
Shipping:
The shipping cost varies according to the customer's delivery address. Please contact customer service for confirmation before placing an order. For more information, please refer to our Shipping Policy.
Returns:
Every product purchased at HGNOVA is eligible for a 30-day return policy, unless otherwise noted. For more information, please refer to our Return Policy.
Delivery:
Delivery time varies by carrier: 7-10 business days or up to 45 days
Payments:

(Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.)
Product Description

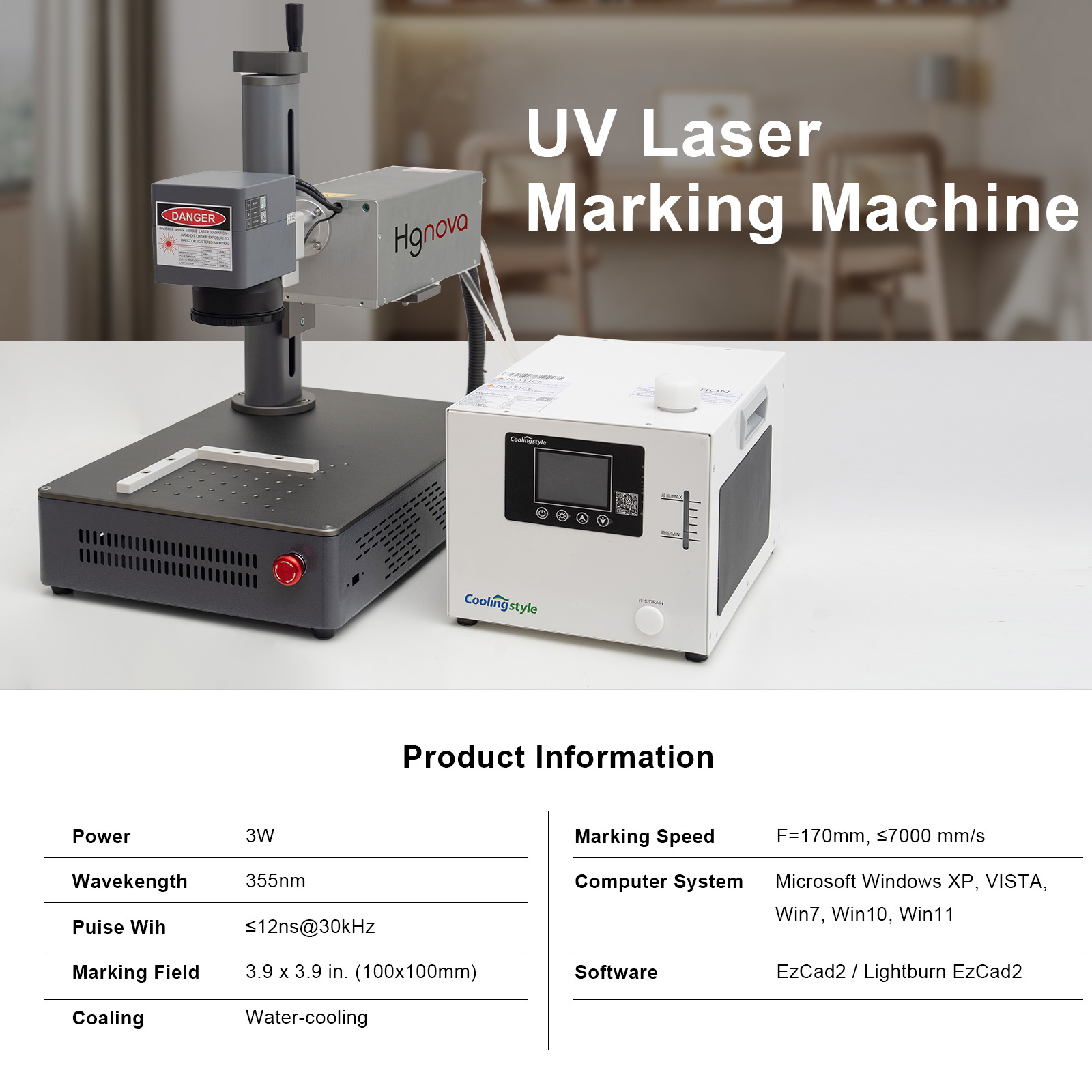

3W UV Laser Marker
This UV laser marker utilizes a world-renowned laser source, delivering robust reliability with an MTBF (Mean Time Between Failures) exceeding 100,000 hours.
355nm UV laser, the omnipotent in lasers
Featuring UV laser technology, the system offers exceptional versatility, capable of marking a wide range of materials including metals, wood, leather, plastics, glass, and other common substrates with ease.

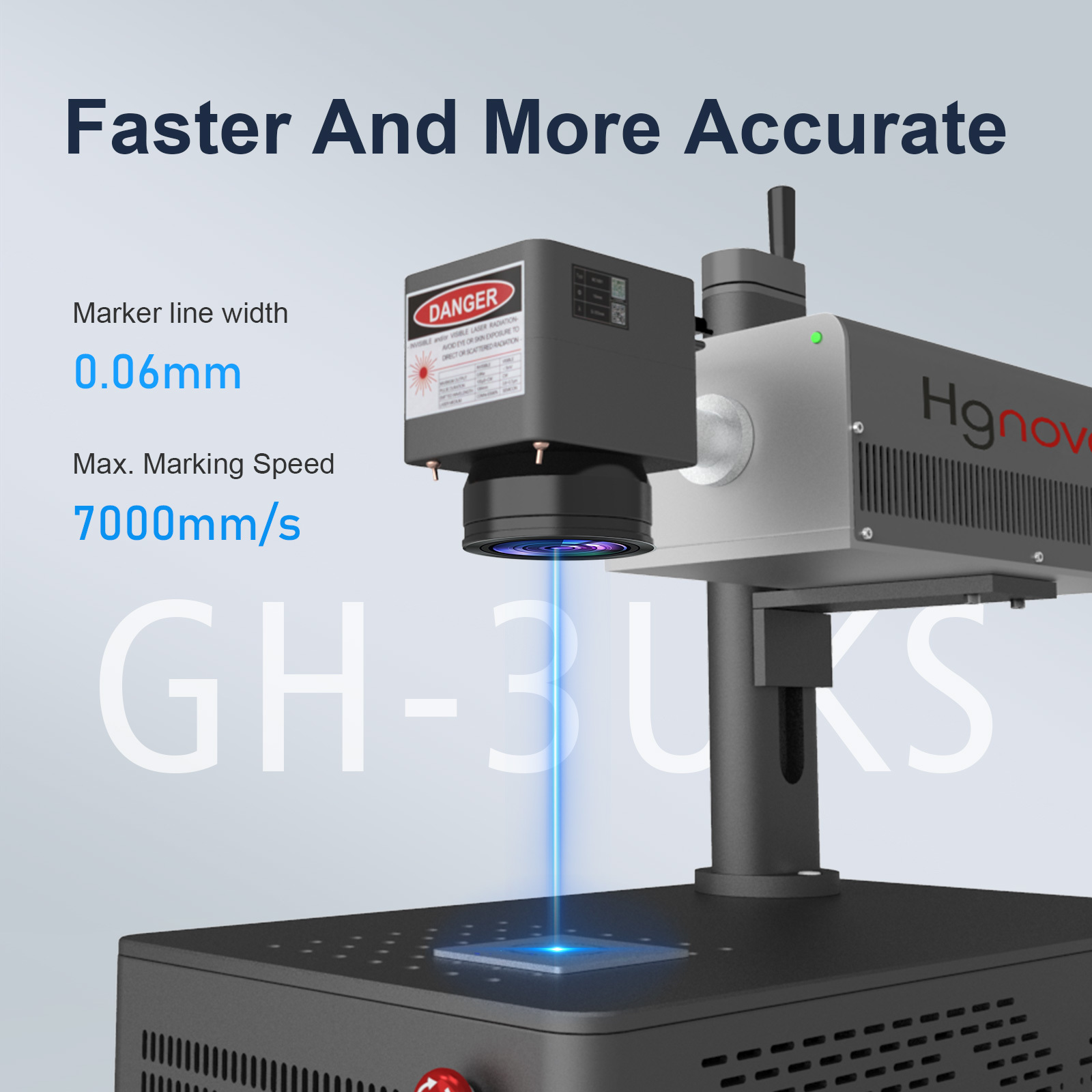

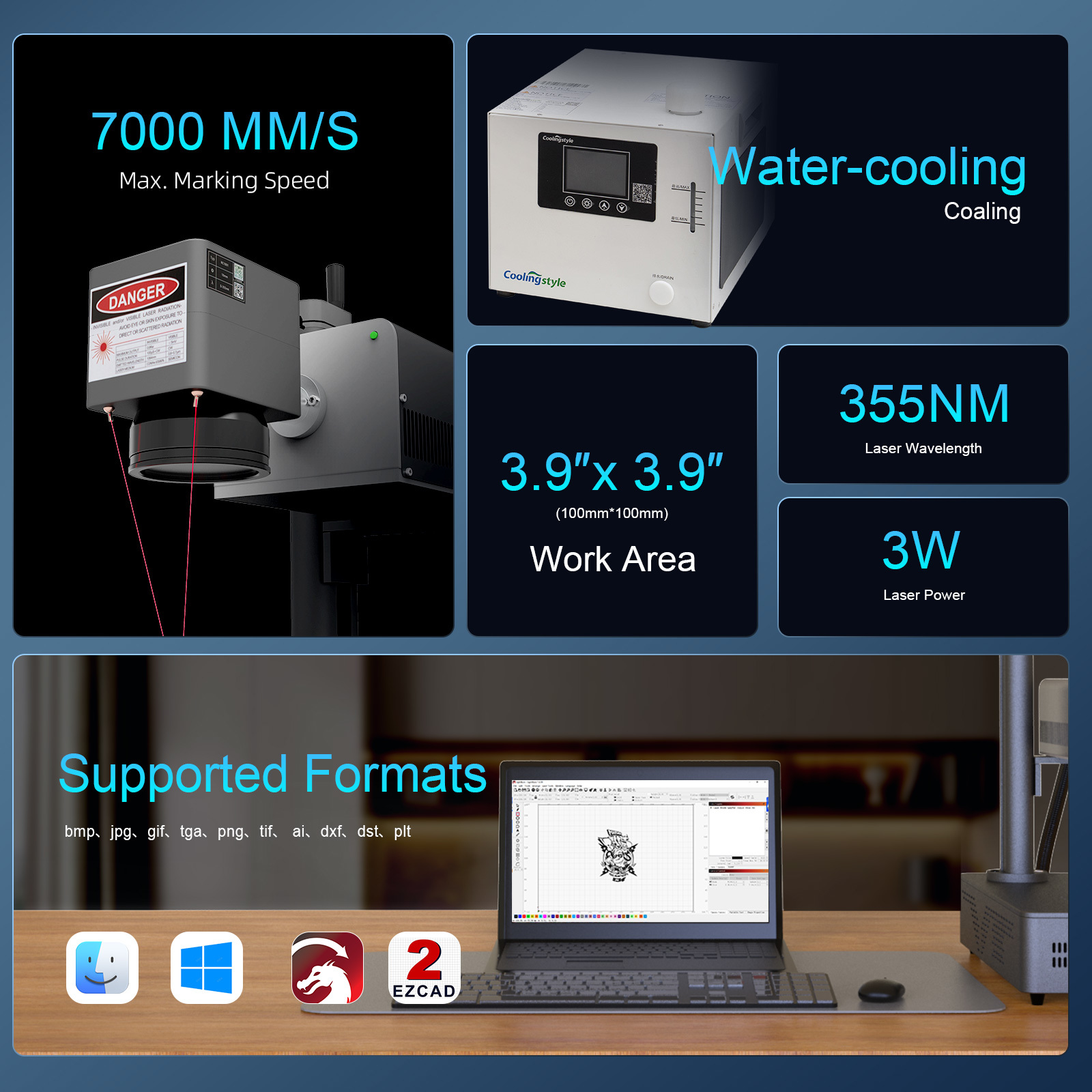

7000 mm/s Max. Marking Speed
Its technologically advanced galvanometer scanning system ensures outstanding precision while enabling rapid, stable marking on flat surfaces at speeds up to 275.6 inches per second (7000 mm/s).
Unparalleled Accuracy Achieved
Achieving a standard line width of 0.06mm with less than 1% distortion, it executes intricate engravings with exceptional precision. As a cold (non-thermal) processing source, the UV laser produces marks without damaging the material surface, resulting in a finely detailed, tactile-free finish.
FΘ Field Lens
Our Fθ lens helps create vivid markings on flat surfaces, maintaining a consistent, focused spot size across its working area.
Red Dot Guidance
A red visible laser ensures quick and effortless focusing, while the scanning optics provide a clear, safe red-light preview for precise pattern positioning.
Desktop Mini Water Chiller
The system employs an efficient water-cooled design, ensuring stable performance within a compact footprint and delivering low power consumption.
YOU CAN ENGRAVE THESE MATERIALS
Applied to common materials such as metal, wood, leather, plastic, glass, etc.
Specifications & Package List
Package List
Water-cooled Integrated UV Laser Maker x1
Water Chiller Unit x1
Coolant Hoses x2
Manual Lifting Column x1
Power Cord x1
30cm (11.8") Straight Ruler x1
Foot Pedal Switch x1
Positioning Bar/Alignment Gauge x1
Hex Key (Allen Wrench) x1
Mounting Screws x6
USB Drive x1 (Containing: Marking Software, Drivers, Red Laser Alignment Calibration Parameters, Area Scaling Parameters)
Technical Parameters
Water Cooling 3W UV Laser Marking Machine | |
Model | GH-3UKS |
33Laser Output Power | 3W |
Laser Wavelength | 355nm |
Pulse Repetition Rate | 10kHzto150kHz |
Scanning Speed | F=170mm,≤7000 mm/s |
F-Theta Lens | F=170MM standard configurationF=210MM optional |
F=254MM optional | |
Marking Field | 100*100mm/150*150mm/175*175mm optional |
Beam Spot Diameter | 0.7mm |
Beam Circularity | >90% |
Cooling Method | Water Cooling |
Z-Axis Focus Adjustment Range | 500mm; hand-operated |
Power Supply Requirement | 2.0KW/AC220V/50HZ 5% |
Chiller Dimensions | 345X248X215MM |
Chiller Weight | Net weight 10KG / total weight 11.5KG |
Main Unit Dimensions | 500x330x580MM |
Main Unit Weight | Net 20KG / total 22KG |
