SMART2-20W Split Fiber Laser Marking Machine
$ 1179
$ 1288
Save:$666
重量
SKU: SMART2
Condition:New
-
Option
- Machine
- Machine with Lightburn
隐藏域元素占位
Shipping:
The shipping cost varies according to the customer's delivery address. Please contact customer service for confirmation before placing an order. For more information, please refer to our Shipping Policy.
Returns:
Every product purchased at HGNOVA is eligible for a 30-day return policy, unless otherwise noted. For more information, please refer to our Return Policy.
Delivery:
Delivery time varies by carrier: 7-10 business days or up to 45 days
Payments:
(Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.)
Product Description
MAX Laser Advanced Lasers
Fine marking capability, high stability. Exceptional longevity: 100,000+ hours operational lifespan. Delivers superior quality laser beam output.
High-Speed Galvanometer Scanner & Dynamic Scanning
Integrated design featuring a high-speed vibrating mirror. Achieves rapid marking speeds exceeding 7000 mm/s.
Precision Focused Spot & High-Accuracy Marking
Forms a uniformly sized focused spot across the entire marking plane. Spot positioning accuracy up to 0.01 mm enables high-precision marking.

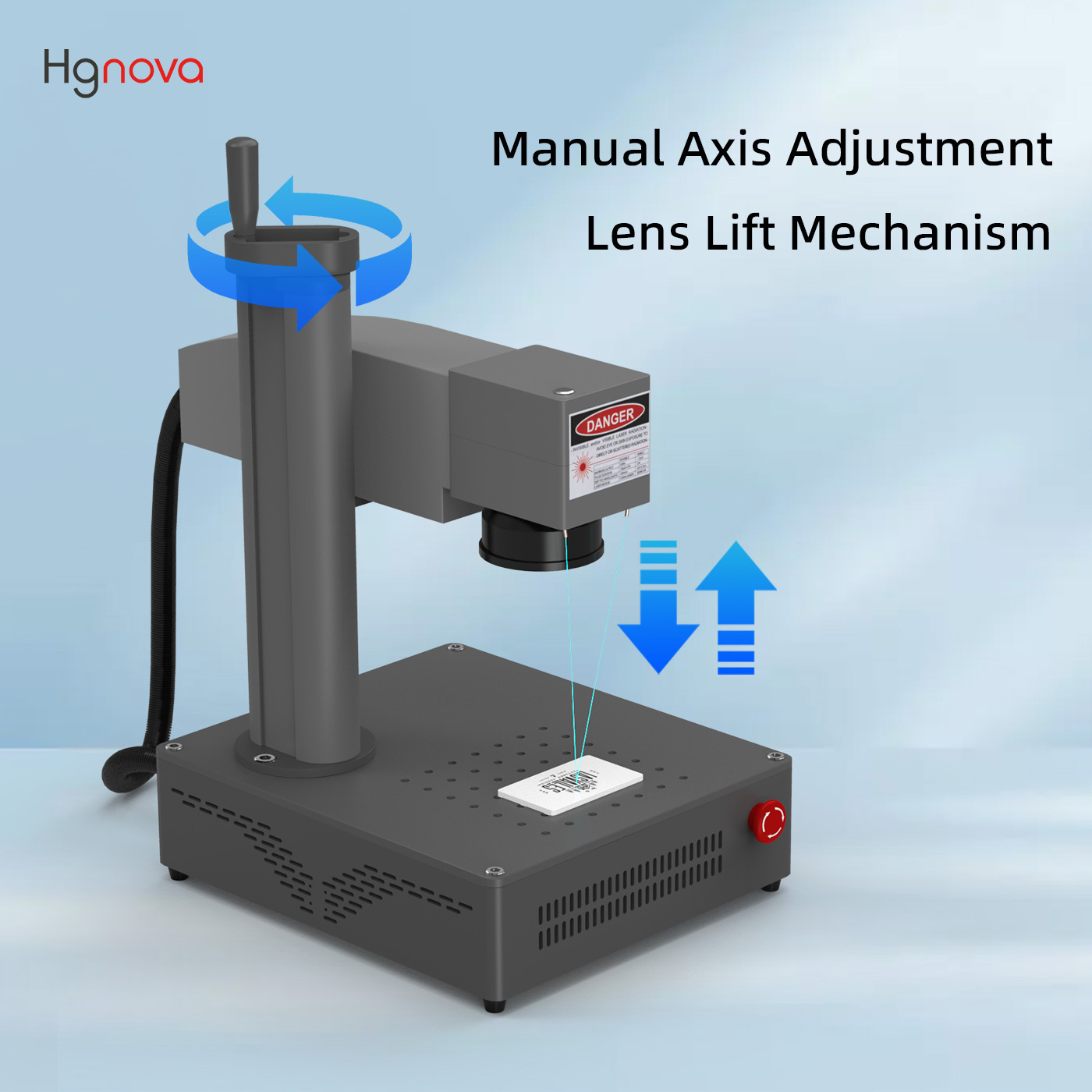

Manual Axis Adjustment & Lens Lift Mechanism
High-precision screw-controlled bracket lift system. Allows manual Z-axis adjustment and lens height positioning. Optimizes marking focus and effect for specific application requirements.

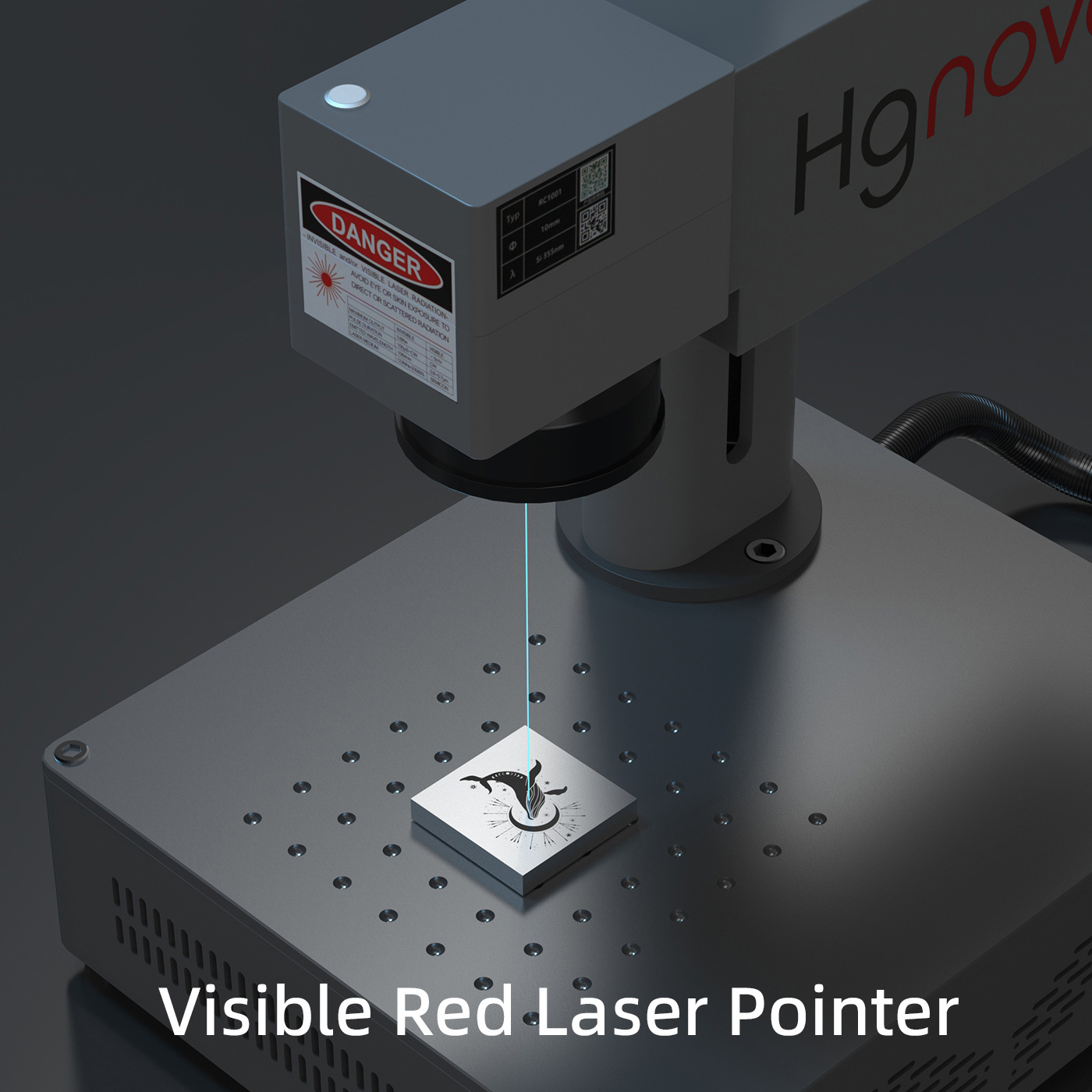

Visible Red Laser Pointer
Integrated visible laser pointer enables quick and easy focusing. Scanning lens projects a clear, safe red light preview of the pattern outline for convenient positioning.

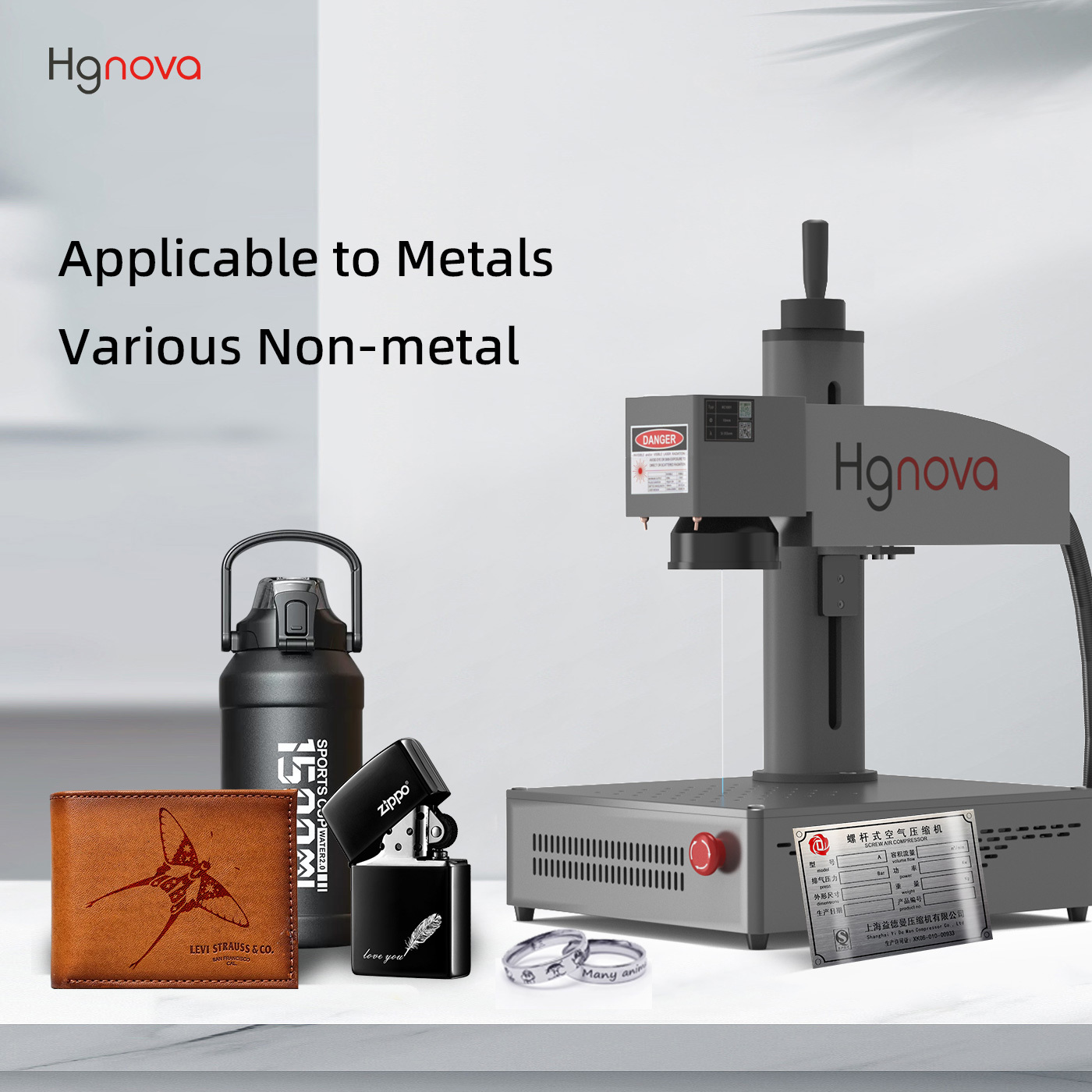

Applicable to Metals & Various Non-metal
Consumable-free operation for standard marking.Suitable for marking most metals and plastics.
Specifications & Package List
Package List
1 x Fiber Laser Engraving Machine
1 x Pair of Laser Safety Glasses
2 x Power Cables
3 x Hex Keys (Allen Wrenches)
1 x 30cm Straight Ruler
1 x User Manual
2 x Positioning Bars
6 x Mounting Screws
1 x USB Drive
Technical Parameters
Model | SMART 2 |
Laser type | Fiber |
Power | 20w |
Laser Wavelength | 1064nm |
Line Width | 0.05~0.01mm |
Scanning Speed | ≤7000 mm/s |
Positioning Repeat Accuracy | ≤0.001mm |
Working Area | 110*110mm |
Marking Depth | 0.015~0.2mm |
Working Accuracy | ≤0.01mm |
Operating Software | EzCad2 for Windows XP, 7, 8, or 10 (32/64 bit) |
Supported Image Formats | ai, .bmp, .dx, .dxf, .gif, .jpg, .plt, .png, .tga, .tif |
Cooling Method | Air Cooling |
Power Supply | AC220V/50Hz or AC110V/60Hz Voltage Fluctuation Range±5% |
Temperature, Humidity | 0~40℃,30%≤RH≤80%, |
Air Conditioning Required Beyond Specified Range | |
Oil Mist, Condensation | Not allowed |
Dimensions (L×W×H) | 560*460*330mm |
Net Weight of Machine | With packaging17kg |
Material | All metal and some non-metal |
